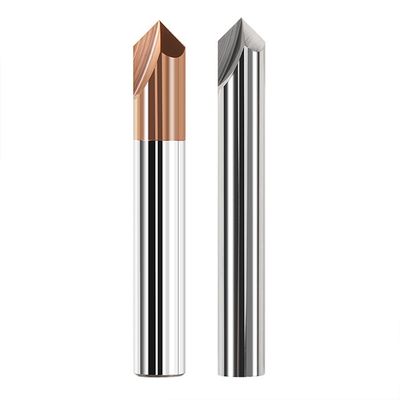

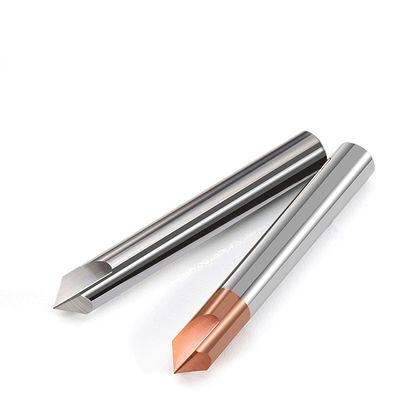

Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

Büyük resim :  Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

Ürün ayrıntıları:
Menşe yeri: Sichuan, Çin
Marka adı: KEDEL
Model numarası: 2 flüt
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10
Fiyat: $1.02-1.80
İletişim

Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy

Açıklama
Kaplama: Tialsin Malzeme: 0,6um ince taneli tungsten karbür

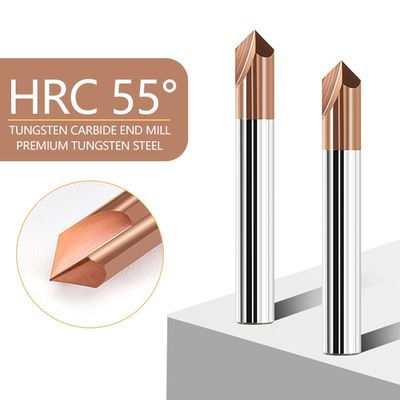

Şekil: Düz HRC: 55HRC
Sarmal açı: / flüt: 2
Çip Flüt: 2 Açılış: 90 °
Kesme çapı: 0.1-0.9 Flüt Uzunluğu: 0,2-1,8
Şaft çapı: 4 Toplam uzunluk: 50
Oluk Açısı: 55 ° Uygun malzemeler: BAKIR, ALAŞIMLI ÇELİK, SIRADAN ÇELİK PARÇALAR, DÖKME DEMİR
Makine Uyumluluğu: CNC Üretim Merkezi, Gravür Makinesi, CNC Freze Makinesi
Vurgulamak:

55-Degree Straight Groove Tungsten Carbide End Mill

,

nACo4 Coating Tungsten Carbide End Mill

,

0.6um fine-grained tungsten carbide End Mill

Solid End Mill With 55-Degree Straight Groove and Chamfer
Premium cutting tool for steel and aluminum alloy machining
High-performance solid end mill designed for CNC machining centers, featuring a 55-degree straight groove and chamfer for optimal cutting performance in steel and aluminum alloy applications.
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 0 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 1 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 2 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 3 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 4 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 5
Technical Specifications
Parameter Value
Flutes 2
Chip Flute 2
Coating TiALSiN
Shape Drill
Angle 90°
HRC 65°
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 6

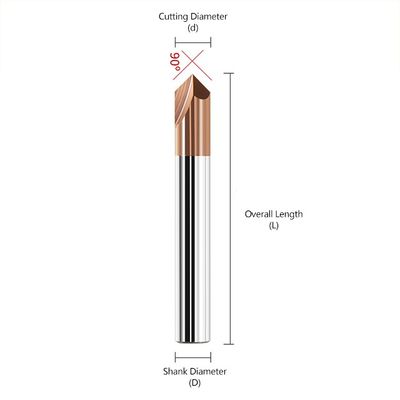

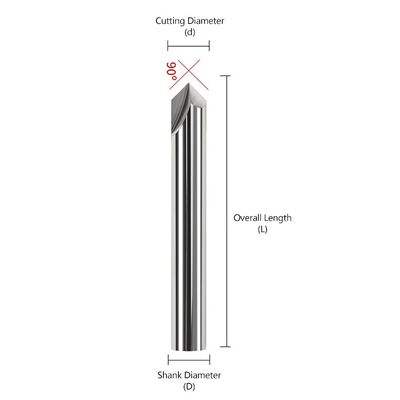

Dimensional Specifications
Number of Flutes Cutting Diameter (d) Flute Length (l) Shank Diameter (D) Overall Length (L)
Double blade 0.1 0.2 4 50
Double blade 0.2 0.4 4 50
Double blade 0.3 0.6 4 50
Double blade 0.4 0.8 4 50
Double blade 0.5 1 4 50
Double blade 0.6 1.2 4 50
Double blade 0.7 1.4 4 50
Double blade 0.8 1.6 4 50
Double blade 0.9 1.8 4 50
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 7 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 8
Company Profile
Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 9 Tungsten Carbide End Mill with 90° Angle and Chamfer for Flat Shape Machining in Steel and Aluminum Alloy 10

FAQ

Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
